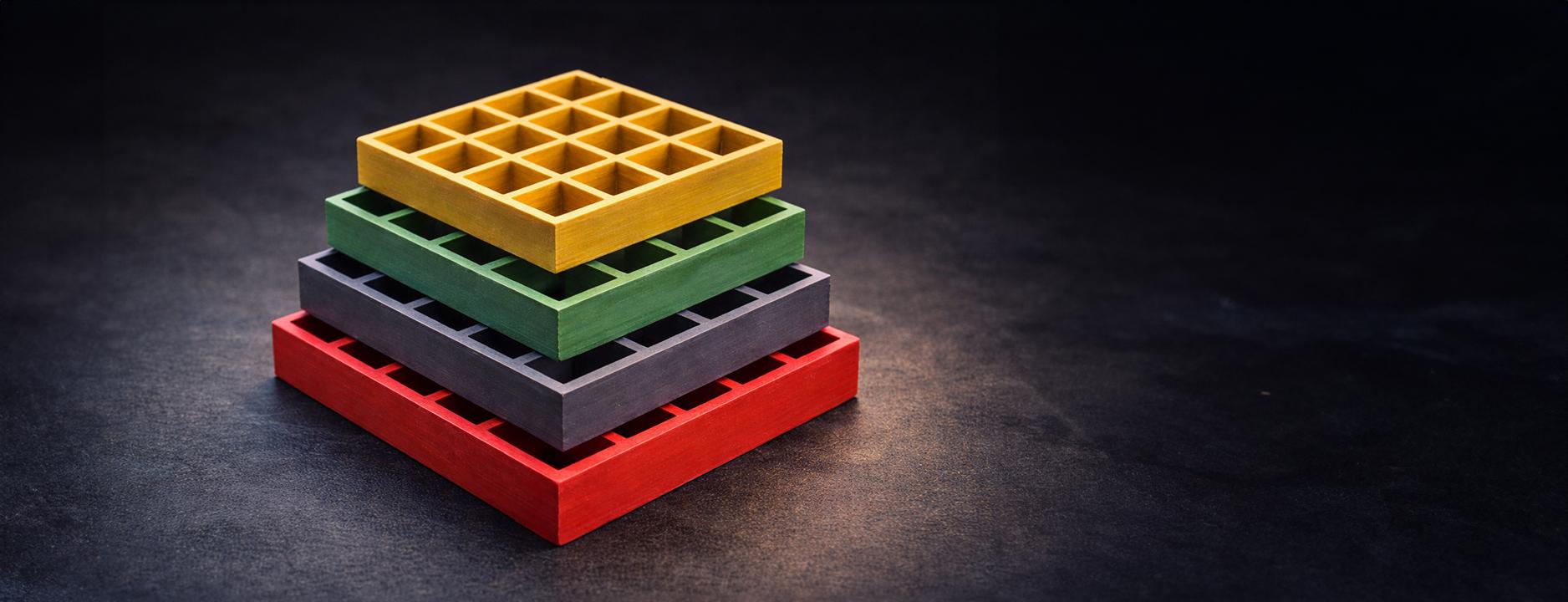

CTP COMPOSITE GRATING:
Superior Performance and Durability
The CTP grates we offer at Ceylan Kompozit are modern building materials that are fiberglass-reinforced, lightweight, high-load-bearing, and corrosion-resistant. They provide superior and reliable solutions in many demanding applications, from chemically exposed floors to industrial platforms.
Ceylan Kompozit offers custom production solutions tailored to customer requests, in addition to standard size and color options. Depending on the intended usage conditions, the performance of the products is maximized through the use of specific resin types and chemical additives.
| Model Code | Height (H) |
Eye Measurement (A×B) (C×D) |
Bar Thickness | Weight | Panel Measurement |
| mm | mm | mm | (kg/m 2 ) | mm × mm | |
| CG-25.01.1 | 25 | 38×38 | 5 - 7 | 12,7 | 1035×4040 |
| CG-25.01.2 | 25 | 38×38 | 5 - 7 | 12,7 | 1220×3660 |
| CG-30.01.1 | 30 | 38×38 | 5 - 7 | 15,2 | 1035×4040 |
| CG-30.01.2 | 30 | 38×38 | 5 - 7 | 15,2 | 1220×3660 |
| CG-38.01.1 | 38 | 38×38 | 5 - 7 | 19,8 | 1035×4040 |
| CG-38.01.2 | 38 | 38×38 | 5 - 7 | 19,8 | 1220×3660 |
| CG-50.01 | 50 | 38×38 | 5 - 7 | 27,0 | 1035×3660 |
| CG-50.02 | 50 | 38×38 | 8 - 10 | 36,7 | 1000×4030 |
| CG-58.01 | 58 | 38×38 | 8 - 10 | 43,8 | 1000×4030 |
| CG-13.11 | 13 | 50×50 25×25 | 5 - 7 | 6,4 | 1220×3750 |
| CG-20.11 | 20 | 38×38 19×19 | 5 - 7 | 12,1 | 1000×3000 |
| CG-30.11 | 30 | 38×38 19×19 | 5 - 7 | 16,6 | 1035×4040 |
| CG-38.11 | 38 | 38×38 19×19 | 5 - 7 | 22,1 | 1000×4030 |
| CG-38.21 | 38 | 25×50 | 9 - 11 | 33,1 | 1000×4000 |
| CG-50.21 | 50 | 25×50 | 5 - 7 | 30,2 | 1035×3660 |
| CG-13.11.P | 13 | 50×50 25×25 | 5 - 7 | 11,4 | 1220×3750 | |
| CG-20.11.P | 20 | 38×38 19×19 | 5 - 7 | 17,1 | 1000×3000 | |
| CG-25.01.1.P | 25 | 38×38 | 5 - 7 | 17,7 | 1035×4040 | |
| CG-25.01.2.P | 25 | 38×38 | 5 - 7 | 17,7 | 1220×3660 | |
|
30 | 38×38 | 5 - 7 | 20,2 | 1035×4040 | |
| CG-30.01.2.P | 30 | 38×38 | 5 - 7 | 20,2 | 1220×3660 | |
| CG-30.11.P | 30 | 38×38 19×19 | 5 - 7 | 21,6 | 1035×4040 | |
| CG-38.01.1.P | 38 | 38×38 | 5 - 7 | 24,8 | 1035×4040 | |
| CG-38.01.2.P | 38 | 38×38 | 5 - 7 | 24,8 | 1220×3660 | |
| CG-38.11.P | 38 | 38×38 19×19 | 5 - 7 | 27,1 | 1000×4030 | |
| CG-38.21.P | 38 | 25×50 | 9 - 11 | 38,1 | 1000×4000 | |
| CG-50.01.P | 50 | 38×38 | 5 - 7 | 32,0 | 1035×3660 | |
| CG-50.21.P | 50 | 25×50 | 5 - 7 | 35,2 | 1035×3660 | |
| CG-50.02.P | 50 | 38×38 | 8 - 10 | 41,7 | 1000×4030 | |
| CG-58.01.P | 58 | 38×38 | 8 - 10 | 48,8 | 1000×4030 |
Standard Surfaces
Concave Surface
Suitable for use in many environments, including wet and oily conditions, to prevent slipping.
Flat Surface
It is the result of processing the concave grill surface to make it shiny and smooth.
Sand Surface
Suitable for use in situations where extra slip resistance is required.
Covered Surfaces
Lattice Patterned Cover
It is obtained by combining the top part of the flat surface grill with a lattice patterned composite plate.
Sand-Finished Covered
It is the result of processing the concave grill surface to make it shiny and smooth.
Grating Support Foot
Ensures the grating rests securely and non-slip on the ground. Manufactured from flexible and durable special rubber material.
M Type Clip
Used to fix the grating in place and prevent movement in all directions. Manufactured from galvanized coated or stainless steel.
C Type Clip
Used to fix the grating in place and for safety purposes. Manufactured from galvanized coated or stainless steel.
L Type Clip
Used to fix the grating in place and for safety purposes. Manufactured from galvanized coated or stainless steel.
Connection Elements Application Examples
